EFNOTE 3X EFD3X-STDSET-BO Electronic Drum Set Black Oak

The EFNOTE EFD3X-STDSET-BO is an electronic drum set in a Black Oak finish. This drum set includes a standard configuration of electronic drum components typically found in electronic drum kits.


A True In-store Experience
Get expert advice on choosing the right instrument.
Product Description
Electronic drums with an acoustic soul. The Efnote3X offers the ultimate playing experience. Stunning stereo drum and cymbal sounds have been recorded and delivered without the cavernous reverb and added processing common to other electronic drums. These raw samples allow you to sculpt the drum sound to fit the gig just as you would with an acoustic kit. The Efnote3X features six multi-sensor pads and three 360° sensing cymbals that eliminate annoying hot or dead spots so you can just play. The Monocoque (self-supporting) composite shells offer stiffness and durability with six lugs and 2-ply mesh drum heads to reduce crosstalk triggering and rebound. A snare pad with a dedicated side rim yields consistent cross-stick and rim shot results so you can focus on the dynamics, not the mechanics. Bring your double-kick pedal and ride the lightning. The ultra-stable multi-sensing 12 x 4" 6 lug kick pad features a low rebound head, angle-adjustable kick pedal attachment, and rugged spars with rubber/spike tips allowing you to drive the performance with authority. The natural-feel free-swinging 14" split Hi-Hat features 360° multi-optical sensing to capture all your unique articulations. There's a multi-function metronome, stroke analyzer, and 15 tracks of onboard recording so you can work out the kinks and track your progress over time. And when you're ready to gig you can create a set list to specify kits and tempos for each song. It looks cool too! With faux black oak-wrapped shells and a modern independent rack stand, the kit is highly configurable and uniquely identifiable. Efnote kits are ideal for house of worship and other silent-stage applications, especially when used with a full in-ear monitor system (sold separately). Woodshedding, recording, or gigging, do it all with Efnote3X.
- 6-piece shell, 4-piece cymbal set
- Faux black oak finish
- Full stereo drum/cymbal sounds recorded raw with no processing or synthesis added
- Multi-sensor pads and 360° cymbals
- Monocoque FRP shell for stiffness and durability
- Independent snare side rim
- 2-ply mesh drumheads to reduce crosstalk triggering and rebound
- Stable multi-sensing kick pad for single and double beaters
- 14" 2-piece hi-hat cymbal
- 16"/18" full-sized cymbals
- 360° free-swinging top/bottom hi-hat cymbal design
- World's first multi-optical hi-hat sensor to capture the motions in 3D
- Setlist feature enables you to configure kit order with tempo for each song
- USB 8-ch individual audio outputs with Mac / Windows (ASIO)
Product Specifications
Kick- EFD-K12P | |
Size | 12 x 4" |
Finish | Black Oak-ish |
Zone | Head |
Sensor | Multi |
Head | Low-rebound double-layered mesh with beater patch |
Connector | Head (TRS Phones) |
Features | Angle-adjustable kick pedal attachment |
Snare EFD-S12P | |
Size | 12 x 4" |
Finish | Black Oak-ish |
Zone | Head / Rim / Side-Rim |
Sensor | Multi |
Head | Double-layered mesh |
Connector | Head/Rim, Side-Rim (2x TRS Phones) |
Features | Monocoque drum shell, Colored hoop rubber, Side-Rim |
Tom 1 / 2 EFD-T10P | |
Size | 10 x 3.5" |
Finish | Black Oak-ish |
Zone | Head / Rim |
Sensor | Multi |
Head | Double-layered mesh |
Connector | Head/Rim (TRS Phones) |
Features | Monocoque drum shell, Colored hoop rubber, Suspended tom mount |
Tom 3 / 4-EFD-T12P | |
Size | 12 x 4" |
Finish | Black Oak-ish |
Zone | Head / Rim |
Sensor | Multi |
Head | Double-layered mesh |
Connector | Head/Rim (TRS Phones) |
Features | Monocoque drum shell, Colored hoop rubber, Suspended tom mount |
Hi-Hat-EFD-H14 | |
Size | 14" (Top/Bottom) |
Color | Warm gray |
Zone | Bow / Edge / Cup |
Sensor | Multi (360° flat sensing + choke) / Optical |
Connector | 6-pin |
Features | Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface |
Crash 1 / 2-EFD-C16 | |
Size | 16" |
Color | Warm gray |
Zone | Bow / Edge / Cup |
Sensor | Multi (360° flat sensing + choke) |
Connector | Bow/Edge, Cup (2x TRS Phones) |
Features | Weight simulation, Fine engraved surface |
Ride-EFD-C18 | |
Size | 18" |
Color | Warm gray |
Zone | Bow / Edge / Cup |
Sensor | Multi (360° flat sensing + choke) |
Connector | Bow/Edge, Cup (2x TRS Phones) |
Features | Weight simulation, Fine engraved surface |
Trigger Interface | |
3-Zone | Snare, Crash 1/2*, Ride |
2-Zone | Tom 1/2/3/4, HH, Crash 3 |
1-Zone | Kick |

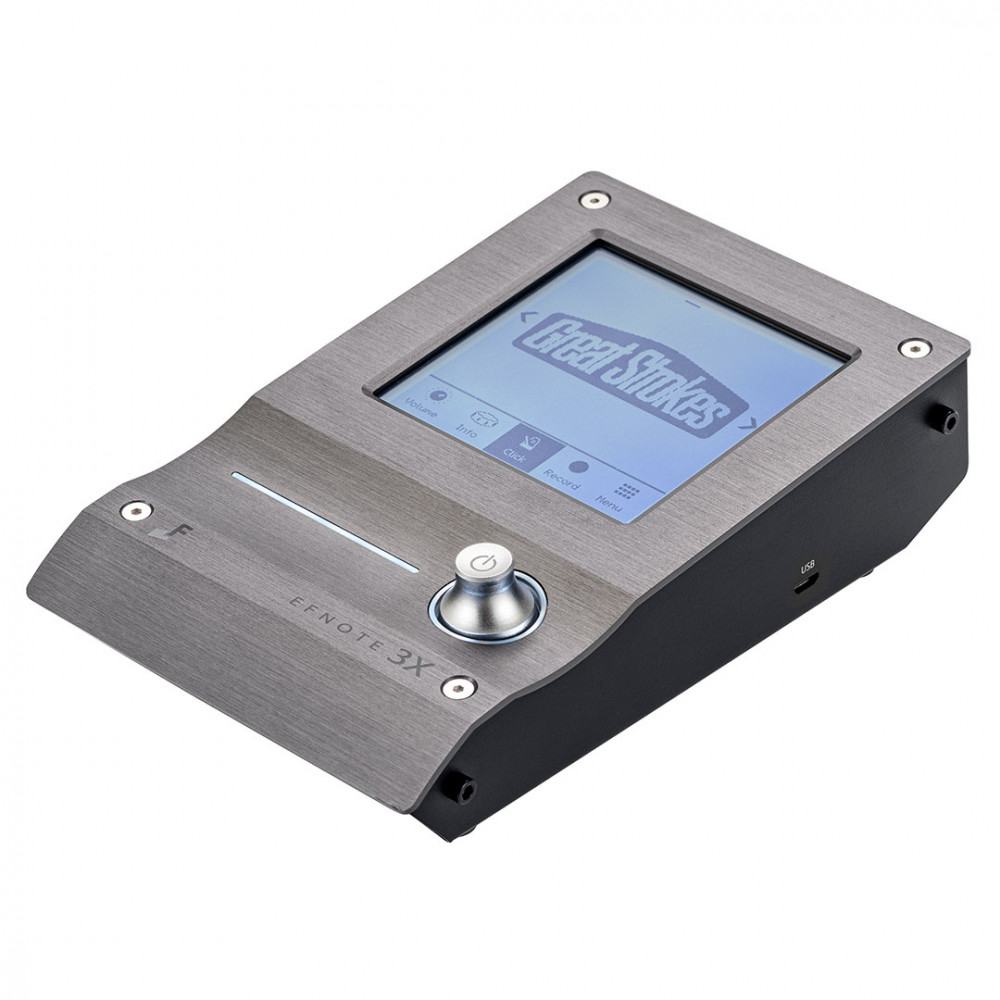

Audio / MIDI Interface | |
Line (1/2) Output | 2x TS Phone (+4dBu, Unbalanced) |
Phones (3/4) Output | Stereo Mini-Phone (320 mW + 320 mW @32O) |
Audio Input | Stereo Mini-Phone (+2dBu Max) |
USB: Micro-B Type USB 2.0 Hi-SpeedAudi | 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO |
MIDI | In/Out |
Audio | Bluetooth Audio Input |
Audio | Bluetooth MIDI In/Out |
MIDI Out | 5-pin DIN |
Drum Kits / Instruments | |
Preset Drum Kits | 16 (Editable) |
User Drum Kits | 34 |
Instruments | Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements |
User Inst Library | 50 (Can be stored customized instruments) |
Edit Parameters | |
Edit Parameters | Level, Pan, Tuning, Muffling (for each pad) |
Edit Parameters | 2-Band EQ (for each pad) |
Edit Parameters | Ambience Effect (8 types) |
Edit Parameters | Pad Layer |
Dimensions | |
Dimensions | 106 (W) x 172 (D) x 47 (H) mm |
Dimensions | 700g |
POWER | |
Power | DC 12V, 500mA (Nominal) / 800mA (Max) |

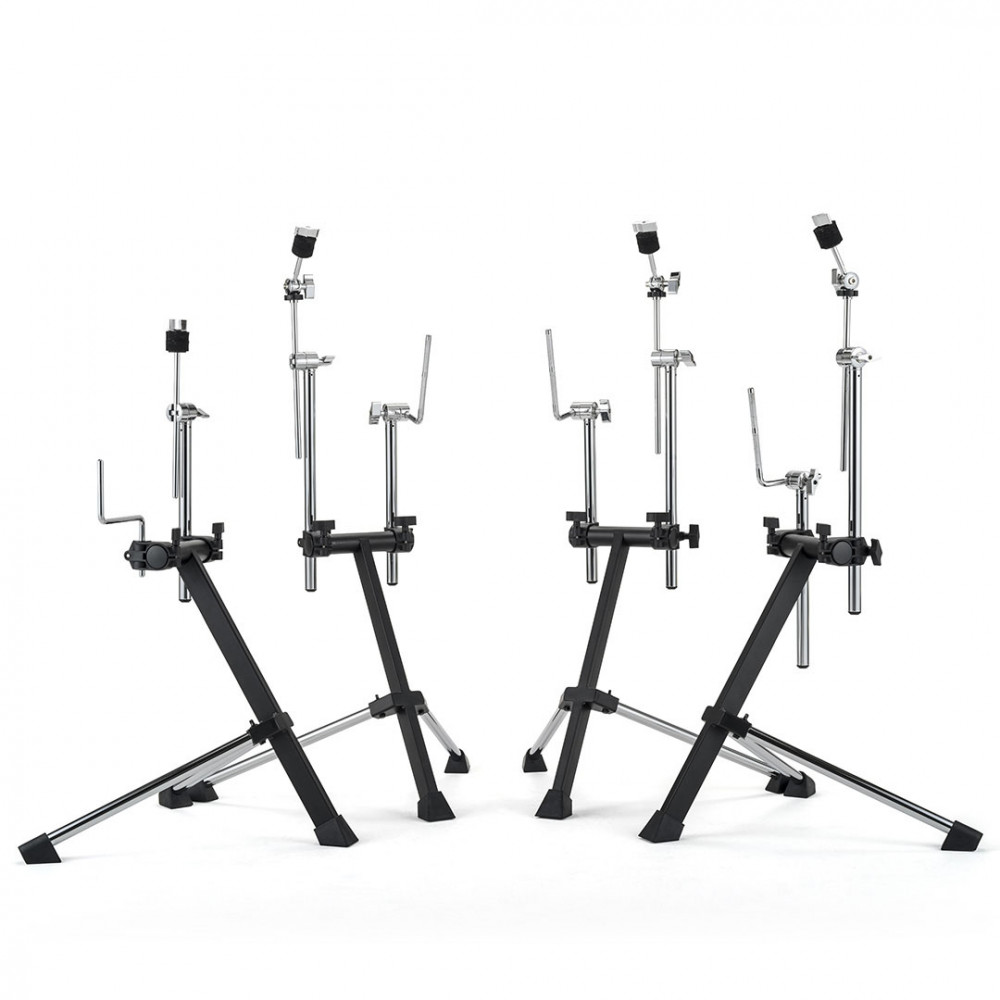

Tripods | |
Tripods | 3x Lambda Tripod |
Snare Drum Stand | |
Snare Drum Stand | For 12" to 14" diameter snare drums |
Snare Drum Stand | Geared basket tilter |
Snare Drum Stand | Double braced legs |
Tube diameter | f19.1 mm (3/4") |
Height adjustment range | 500 -- 650 mm |
Tom Holder | |
Tom Holder | 4x Tom Holder Arm |
Tom Holder | Geared L-rod tilter |
Tom Holder | Knurled carbon steel rod |
L-rod diameter | f11.5 mm (7/16") |
Tube diameter | f22.2 mm (7/8") |
Height adjustment range | 550 -- 900 mm |
Cymbal Arm | |
Cymbal Arm | 3x Boom Cymbal Arm |
Cymbal Arm | Gearless tilter |
Cymbal Arm | Cable holder |
Tube diameter | f22.2 mm (7/8") |
Boom length | 300 mm |
Height adjustment range | 650 -- 1250 mm |
Sound Module Arm | |
Sound Module Arm | 1x Sound Module Arm |
Sound Module Arm | 1x Smartphone Tray |
Placement Size | |
Placement Size | Approx. 170 (W) x 110 (D) cm |
Placement Size | Approx. 5.6 (W) x 3.6 (D) feet |
Accessories | |
Brake-Out Cable | EFD-MULTI-AX |
Brake-Out Cable | EFD-MULTI-B |
4x Trigger Cable 3.0 m | EFD-TRS-LL3 |
Accessories | Cable Ties |
Accessories | Quickstart Guide |
